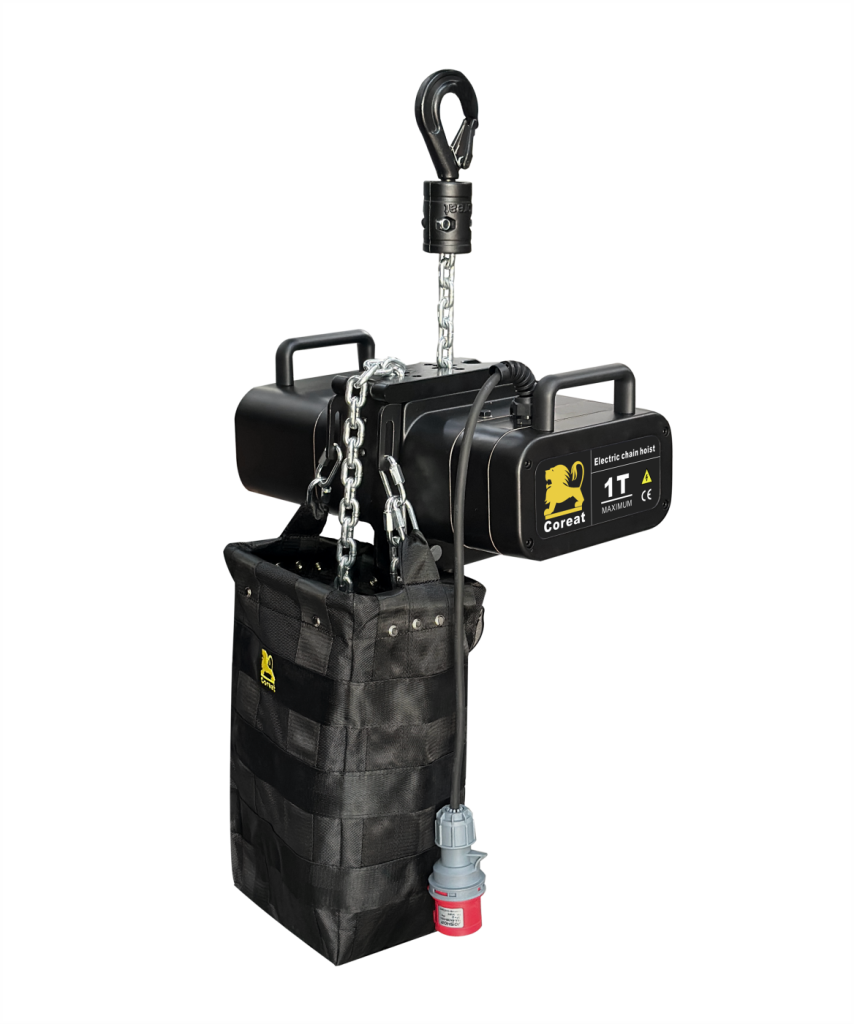

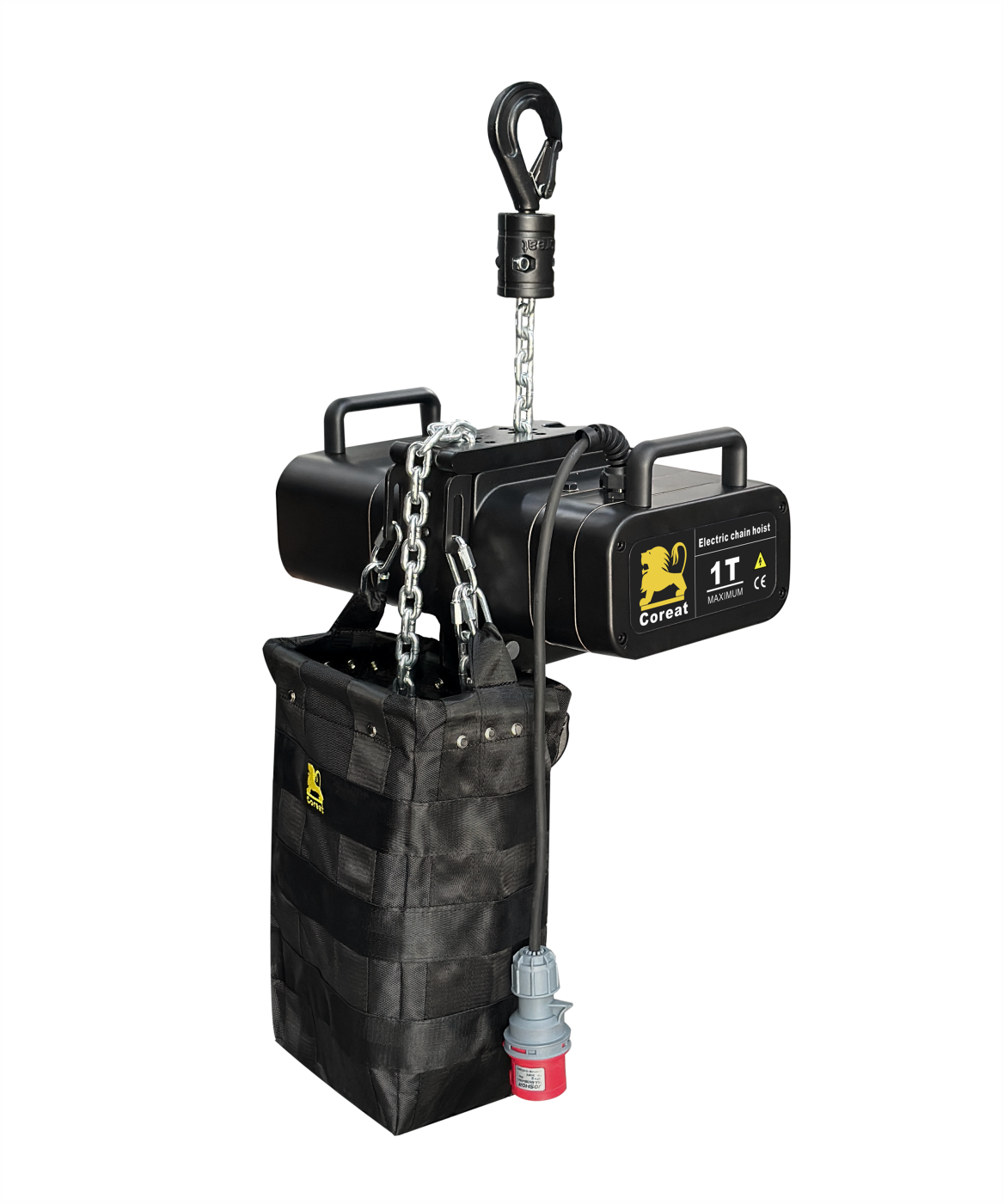

1T STAGE HOIST C10 D8/D8 PLUS
The C10 brings one-tonne lifting capacity in a fixed single-speed configuration designed for permanent stage installations. Built to BGV D8 standard, the C10 Plus adds a double braking system for venues and productions with higher operational demands. Its straightforward, reliable design makes it a practical choice wherever 1,000 kg fixed-rigging capability is needed without the added complexity of variable-speed control — delivering consistent, dependable performance show after show.
The C10 is commonly installed in theaters, auditoriums, broadcast studios, hotel ballrooms, and conference venues for the permanent rigging of lighting fixtures, AV equipment, and scenic elements. A C10H high-speed variant is available for applications where faster lifting is a priority.
TECHNICAL SPECIFICATIONS
| Model | Rated load (kg) | Lifting Speed (m/min) | Power supply | Motor power (kw) | Chain specification (mm) | Chain safety factor | Chain Qty | Hoist weight (kg) | Chain weight (kg/m) | Degree of protection | Insulation class | Braking system | Safety protection |
| C10 D8 | 1000 | 4 | AC 220V/400V 3P/50~60Hz | 0.75 | 7×22 | 8.95 | 1 | 30 | 1 | IP66 | F | single | Clutch overload protection |
| C10 D8 PLUS | 1000 | 4 | AC 220V/400V 3P/50~60Hz | 0.75 | 7×22 | 8.95 | 1 | 37 | 1 | IP66 | F | double | Clutch overload protection |
| C10H D8 | 500 | 8 | AC 220V/400V 3P/50~60Hz | 0.75 | 7×22 | 8.95 | 1 | 30 | 1 | IP66 | F | single | Clutch overload protection |
| C10H D8 PLUS | 500 | 8 | AC 220V/400V 3P/50~60Hz | 0.75 | 7×22 | 8.95 | 1 | 37 | 1 | IP66 | F | double | Clutch overload protection |

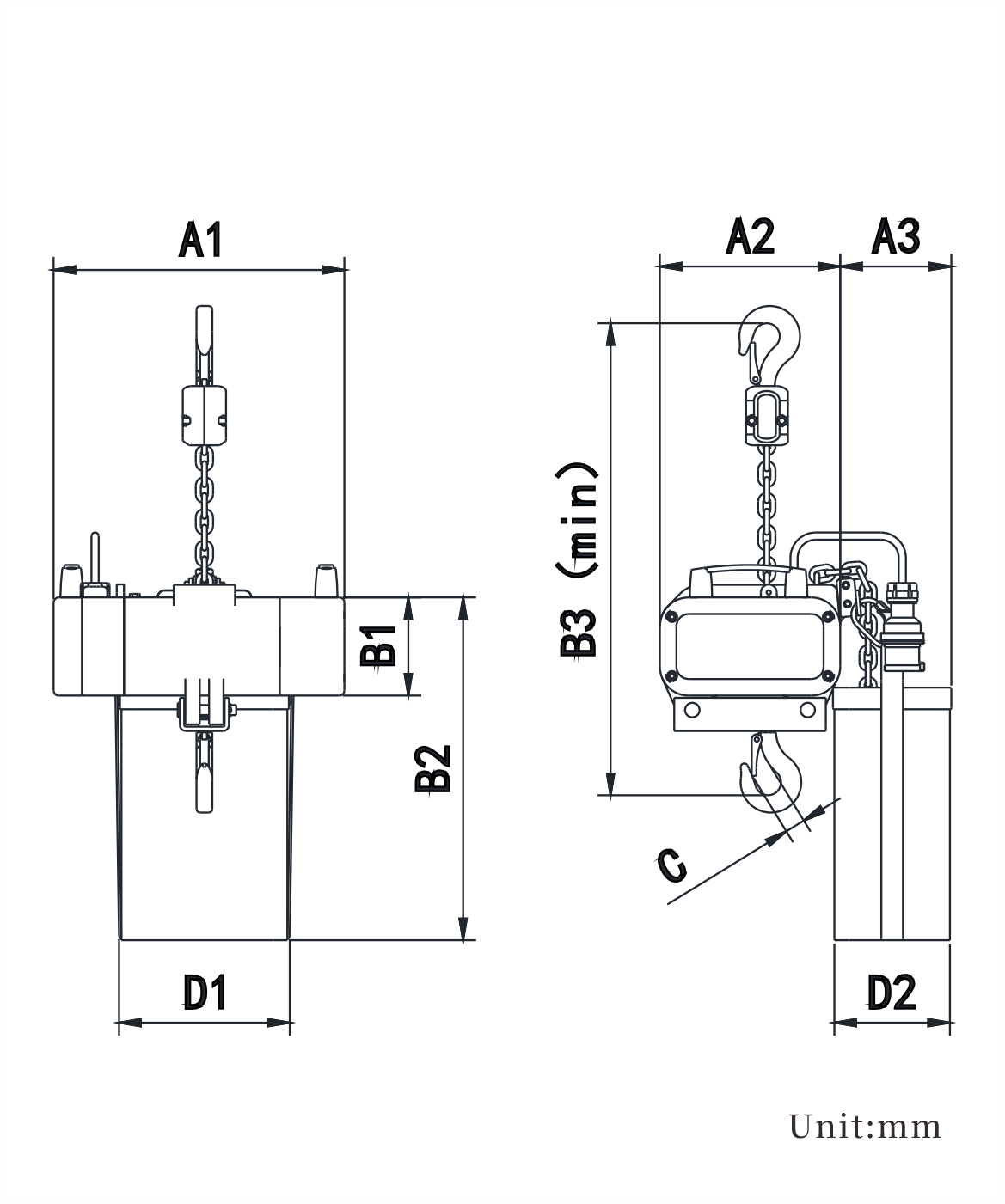

| Model | A1 | A2 | A3 | B1 | B2 | B3 | C | D1 | D2 |
| C10 D8 | 400 | 250 | 150 | 136 | 680 | 550 | 35 | 240 | 160 |
| C10 D8 PLUS | 460 | 250 | 150 | 136 | 680 | 550 | 35 | 240 | 160 |
Electric hoist equipment parts
Transmissions
Hard chromium-manganese steel high-precision helical gear transmission, gearbox oil is permanently lubricated, wear-resistant and silent.
Motor
The dual braking system adopts DC electromagnetic 4 friction plate type, with adjustable clearance and higher safety factor.
Lifting chains
G100 grade and DAT grade high-quality alloy steel lifting chains with an 8-fold safety factor, breaking strength of 1000N/mm². The chains meet the German standards DIN5687, DIN5688 and the Chinese standard ISO3067.
Sprocket
5 nests of lifting sprockets, the machining center is formed at one time, and the chain and gear meshing are increased to ensure the smooth operation of the chain.
Chain guide system
Double layer automatic correction anti jamming chain system, wear-resistant nylon material, integrated injection molding and CNC precision machining, optimized for replacement and maintenance.
