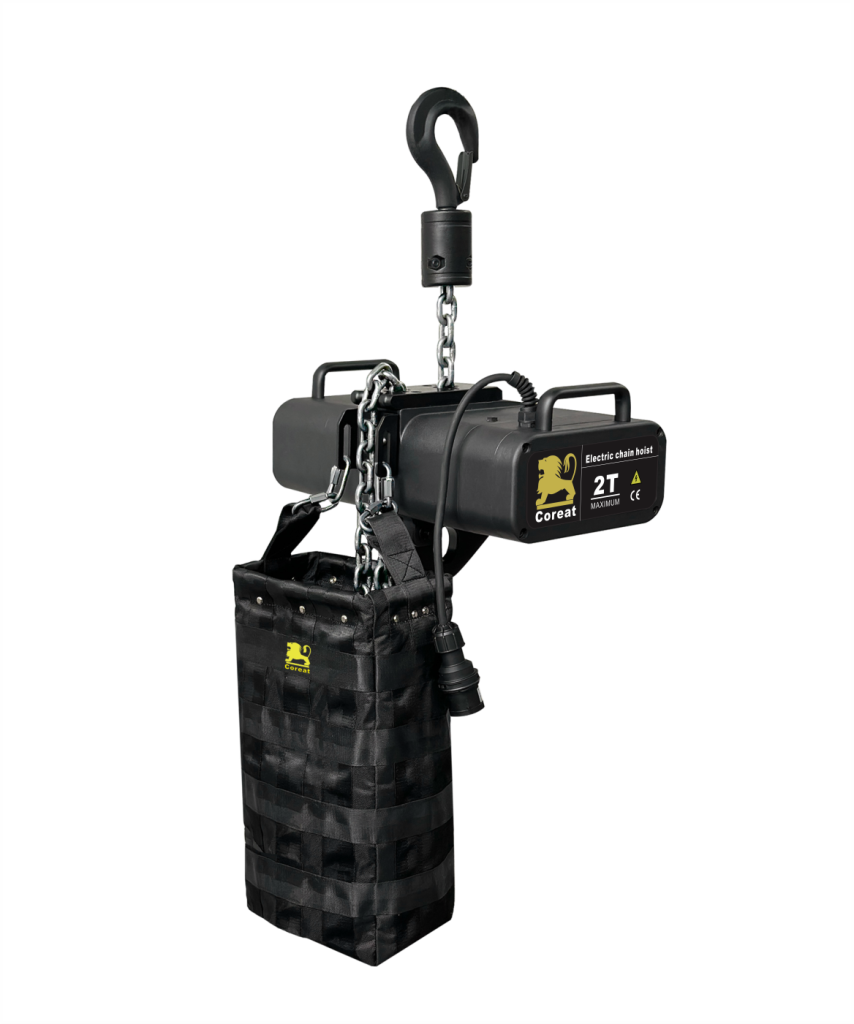

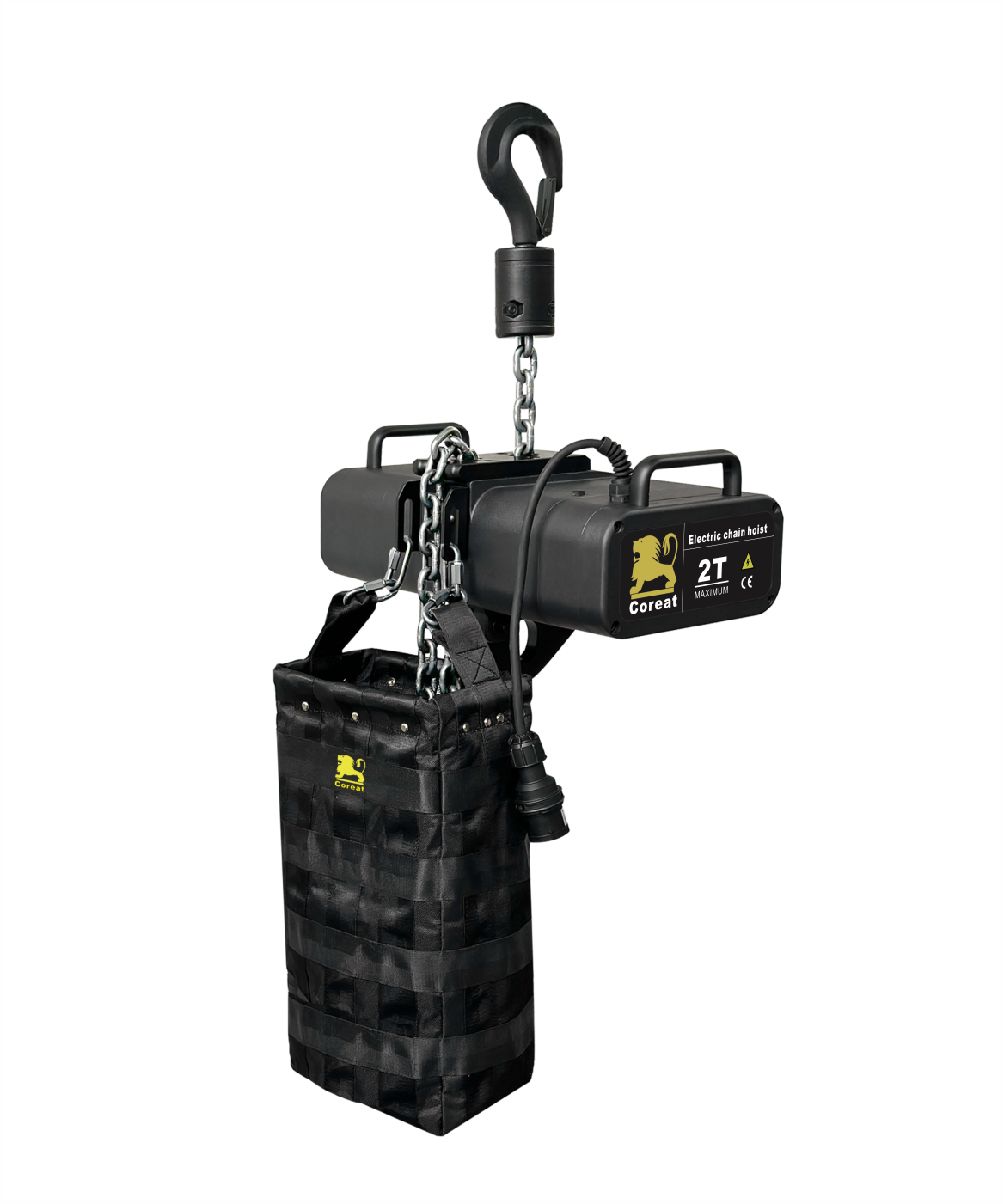

2T STAGE HOIST D8/D8 PLUS
The C20 D8 Plus is Coreat’s highest-capacity stage chain hoist, built to the BGV D8 Plus standard with a double braking system for permanent heavy-load installations. At 2,000 kg rated capacity, it is designed for applications where a standard-range hoist simply isn’t enough — large permanent stage structures, heavy scenic elements, industrial-scale entertainment rigging, and venues with unusually demanding structural loads. Like all Coreat hoists, it features clutch overload protection and IP66 weather protection as standard.
The C20 D8 Plus is specified for permanent installations in major performance venues, large cultural and tourism facilities, heavy scenic lifting in theme parks and immersive attractions, and any project where maximum load capacity and long-term structural reliability are the primary requirements.
TECHNICAL SPECIFICATIONS
| Model | Rated load (kg) | Lifting Speed (m/min) | Power supply | Motor power (kw) | Chain specification (mm) | Chain safety factor | Chain Qty | Hoist weight (kg) | Chain weight (kg/m) | Degree of protection | Insulation class | Braking system | Safety protection |
| C20 D8 Plus | 2000 | 4 | AC 220V/400V 3P/50~60Hz | 1.8 | 10×30 | 8 | 1 | 67 | 2 | IP66 | F | double | Clutch overload protection |

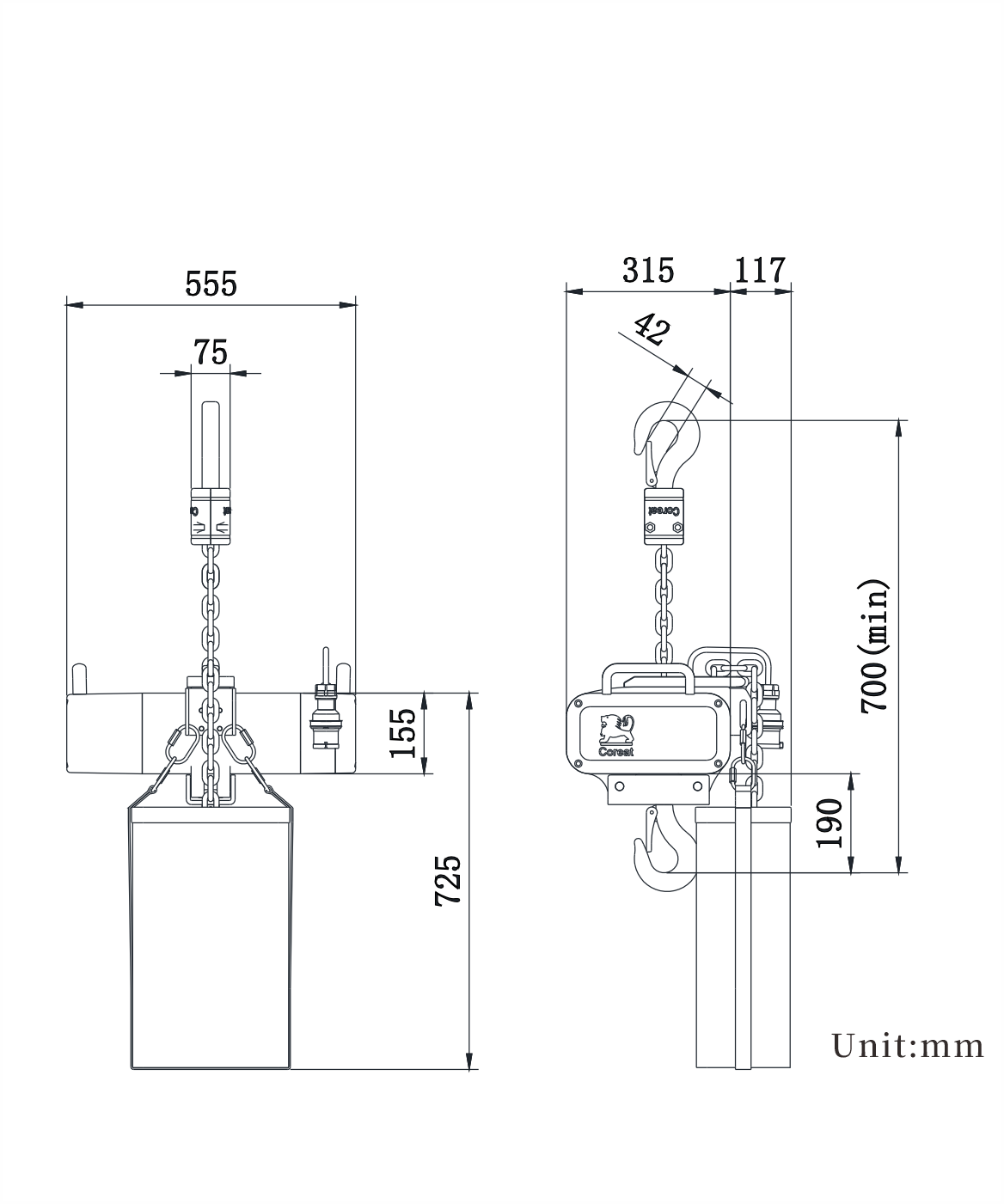

| Model | Total Width | Body Height | Hook Width | Body Depth | Chain Bag Length | Total Height (min) |
| C20 D8 Plus | 555 | 155 | 75 | 315 | 725 | 700 |
Electric hoist equipment parts
Transmissions
Hard chromium-manganese steel high-precision helical gear transmission, gearbox oil is permanently lubricated, wear-resistant and silent.
Motor
The dual braking system adopts DC electromagnetic 4 friction plate type, with adjustable clearance and higher safety factor.
Lifting chains
G100 grade and DAT grade high-quality alloy steel lifting chains with an 8-fold safety factor, breaking strength of 1000N/mm². The chains meet the German standards DIN5687, DIN5688 and the Chinese standard ISO3067.
Sprocket
5 nests of lifting sprockets, the machining center is formed at one time, and the chain and gear meshing are increased to ensure the smooth operation of the chain.
Chain guide system
Double layer automatic correction anti jamming chain system, wear-resistant nylon material, integrated injection molding and CNC precision machining, optimized for replacement and maintenance.
