Motor
1. F-class insulated high-temperature resistant motor coil.
2. H-class high-temperature resistant motor lead-out wire.
2. H-class high-temperature resistant motor lead-out wire.

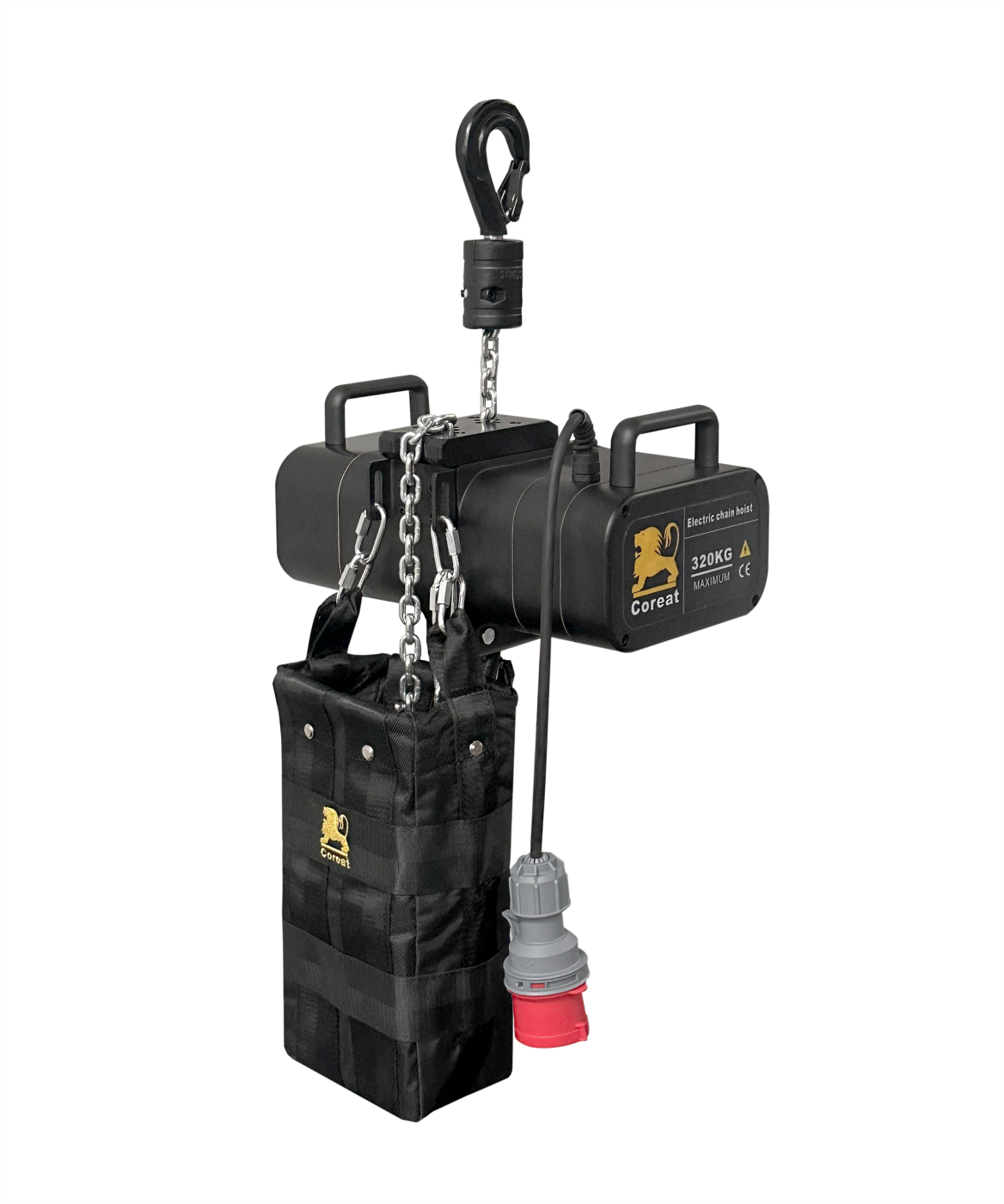

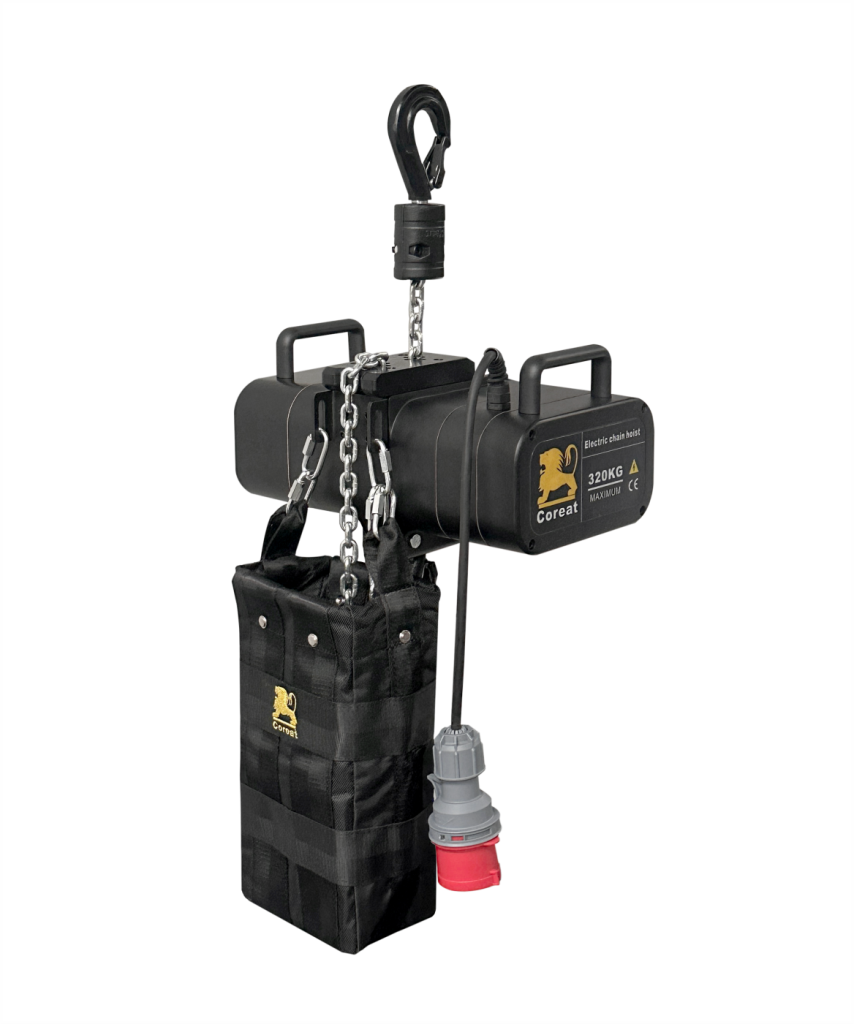

320KG STAGE HOIST D8/D8 PLUS
The V03 is Coreat’s most versatile mid-range stage hoist — capable enough for serious concert and touring rigging, compact and light enough to be practical on the road. Built to BGV D8 standard, the V05 Plus adds a double braking system for productions with higher duty cycle requirements. Its balance of load capacity, build quality, and portability has made it one of the most commonly specified hoists across professional live entertainment globally.
The V03 is the go-to hoist for concert touring companies rigging lighting trusses, LED walls, and PA systems; for mid-size theater fly systems and scenic rigging; and for entertainment venues, nightclubs, and broadcast studios needing a dependable, professional-grade hoisting solution. A V05H high-speed variant is available for faster-paced rigging workflows.
TECHNICAL SPECIFICATIONS
| Model | Rated load (kg) | Lifting speed (m/min) | Power supply | Motor power (kw) | Chain specification (mm) | Chain safety factor | Chain Qty | Hoist weight (kg) | Chain weight (kg/m) | Degree of protection | Insulation class | Braking system | Safety protection | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C03 D8 | 320 | 4 | AC 220V/400V 3P/50~60Hz | 0.25 | 5×15 | 8 | 1 | 15.2 | 0.5 | IP66 | F | single | Clutch overload protection | ||
| C03 D8 PLUS | 320 | 4 | 0.25 | 5×15 | 8 | 1 | 16.5 | 0.5 | IP66 | F | double | ||||

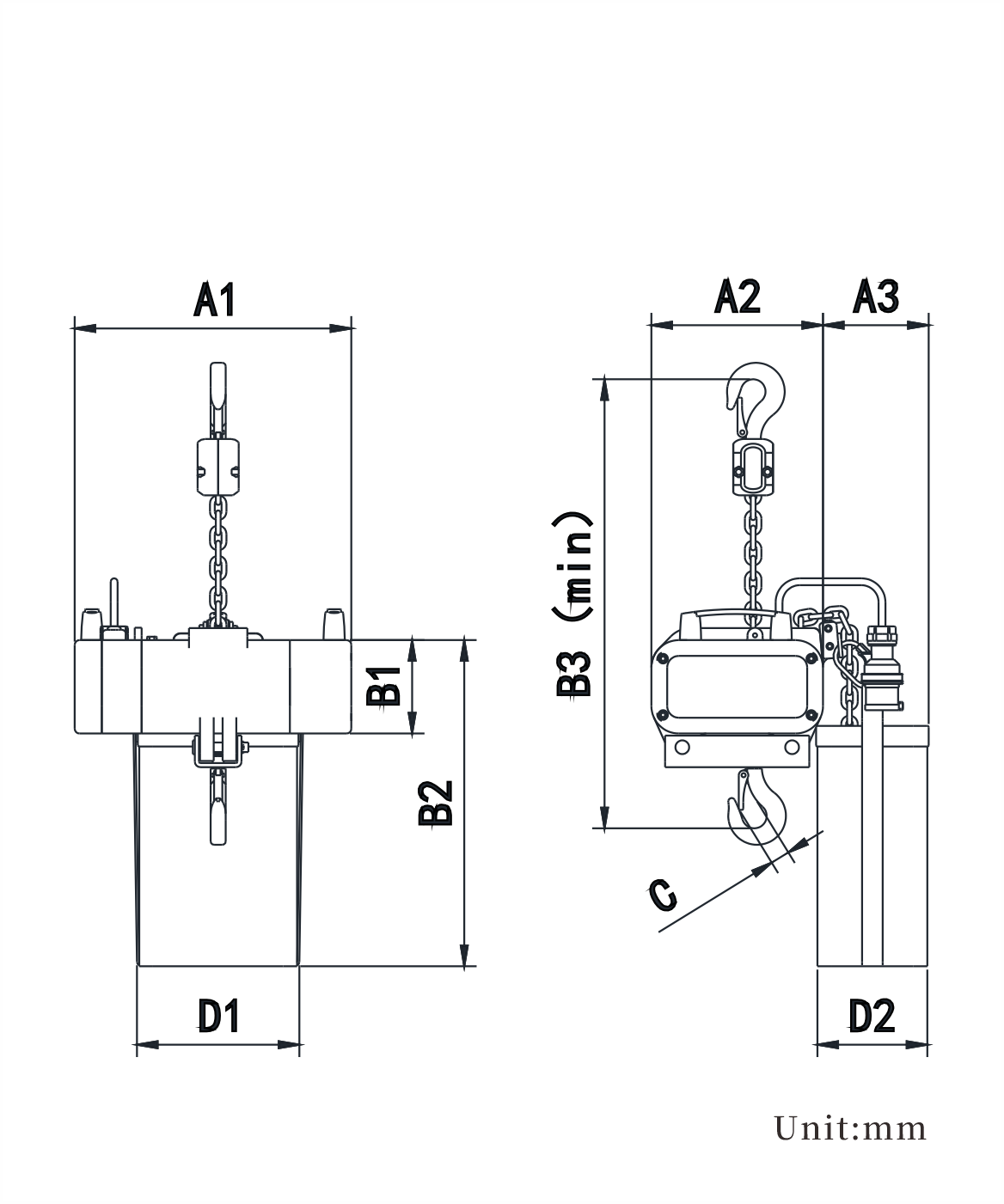

| Model | A1 | A2 | A3 | B1 | B2 | B3 | C | D1 | D2 |
|---|---|---|---|---|---|---|---|---|---|
| C03 D8 | 328 | 195 | 77 | 100 | 360 | 350 | 20 | 160 | 120 |
| C03 D8 PLUS | 372 | 195 | 77 | 100 | 360 | 350 | 20 | 160 | 120 |
Electric hoist equipment parts
Transmissions
Hard chromium-manganese steel high-precision helical gear transmission, gearbox oil is permanently lubricated, wear-resistant and silent.
Motor
The dual braking system adopts DC electromagnetic 4 friction plate type, with adjustable clearance and higher safety factor.
Lifting chains
G100 grade and DAT grade high-quality alloy steel lifting chains with an 8-fold safety factor, breaking strength of 1000N/mm². The chains meet the German standards DIN5687, DIN5688 and the Chinese standard ISO3067.
Sprocket
5 nests of lifting sprockets, the machining center is formed at one time, and the chain and gear meshing are increased to ensure the smooth operation of the chain.
Chain guide system
Double layer automatic correction anti jamming chain system, wear-resistant nylon material, integrated injection molding and CNC precision machining, optimized for replacement and maintenance.
