Motor
1. F-class insulated high-temperature resistant motor coil.
2. H-class high-temperature resistant motor lead-out wire.
2. H-class high-temperature resistant motor lead-out wire.

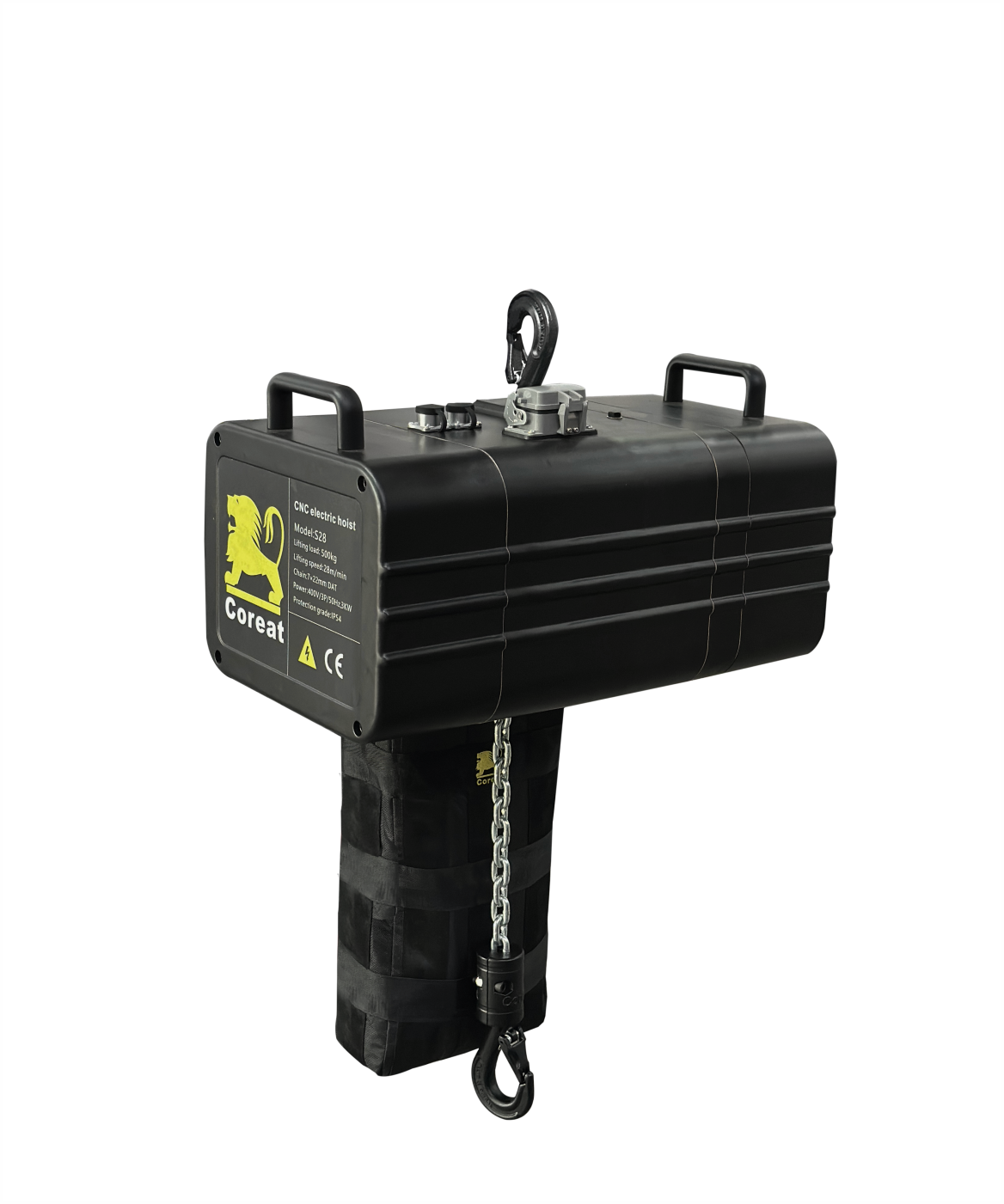

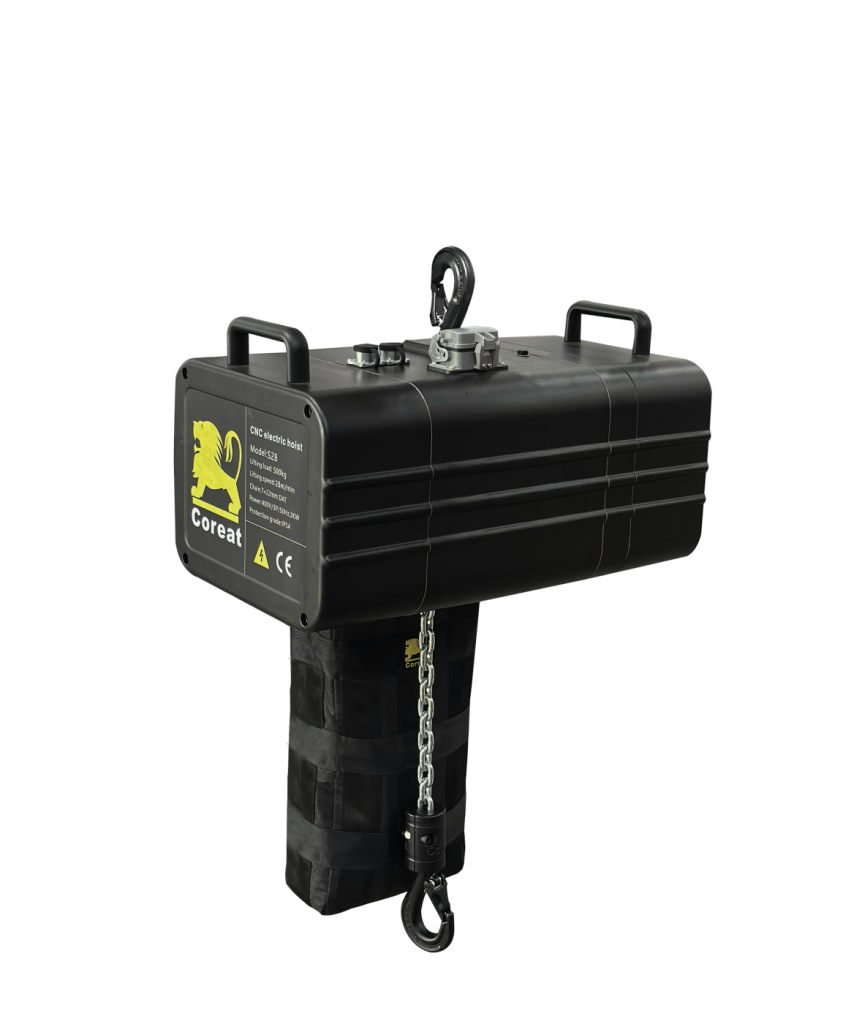

C1 INTELLIGENT CNC HOIST
Coreat C1 intelligent CNC electric hoist, equipped with the latest internationally recognized EtherCAT bus servo system, intelligent motion control mode and compact integrated design, lightweight High strength aluminum alloy shell,suitable for use in large-scale events, concerts, TV programs, and fixed installation projects. The product has ultra quiet,easy to operate, and precise positioning of absolute value encoders.Features: With a maximum speed of 28m/min, smooth and precise 2D and 3D movements better enhance overall creativity and stage art presentation.
Advantages&Features
1.Straight hanging hanging mode
2.EtherCAT bus servo motor
3.Repeated positioning accuracy of multi turn absolute value encoder ± 1mm
4. Complies with international safety standards: EN14492, EN60204, DIN56950
5.DAT grade galvanized lifting chain(Domestic or imported chains are optional)
6. Plug and play, the console automatically configures device numbers
7. Simple wiring, plug in power supply, network cable input, output ports
TECHNICAL SPECIFICATIONS
| Model | Rated load (kg) | Lifting speed (m/min) | Power supply | Motor power (kw) | Chain specification (mm) | Chain safety factor | Chain Qty | Hoist weight (kg) | Chain weight (kg/m) | Degree of protection | Insulation class | Braking system | Safety protection | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S28 C1 | 800 | 16 | 400V/50Hz/3P220V/60Hz/3P | 3 | 7.9×21.7 | 10 | 1 | 69 | 1 | IP54 | F | double | Overload protection Limit switch Encoder |
||
| 500 | 28 | 3 | 7×22 | 10 | 1 | 67 | 1 | IP54 | F | double | |||||

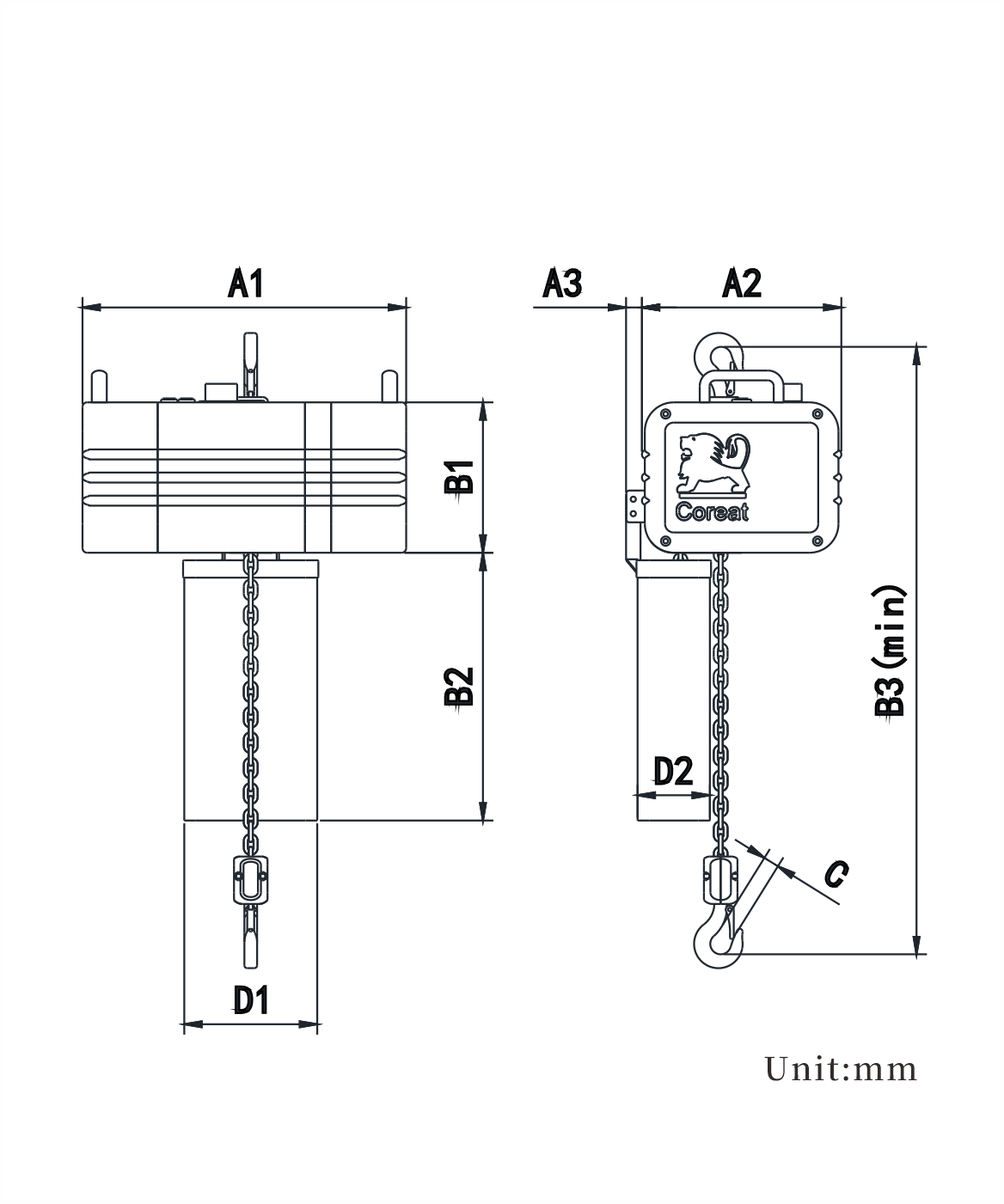

| Model | A1 | A2 | A3 | B1 | B2 | B3 | C | D1 | D2 |
|---|---|---|---|---|---|---|---|---|---|
| S28 C1 | 560 | 276 | 110 | 136 | 680 | 550 | 35 | 240 | 160 |
Control system
1.Independently developed professional mechanical digital control console.
2.10/15 inch touch screen(selectable).
3.Scene simulation software.
4.16/32/48/64/128/256 axis motion control.
5.USB port program import.
6.Supports external communication interface protocols such as DMX512 and TCP.
7.Working voltage: 100-240V (50/60Hz).
8.External dimensions: W490×D280×H190mm(10 inch),W680×D420×H230mm(15 inch).
9.Simple, intuitive and safe wiring system.
10.Real-time manual control of the electric hoist during installation and disassembly .
11.The electric hoist can be combined freely to increase or decrease the number of electric hoists without reprogramming.
12.Can choose acceleration and deceleration curve, linear interpolation, circular interpolation, helical interpolation, space circular arc.
13.Support multi-task, multi-axis group, multi-axis cooperative motion control software system.
14.Remote Control Visualization Online Technical Support.
15.Software emergency stop or emergency stop system.
16.Specially dedicated air box, to minimize loading time .

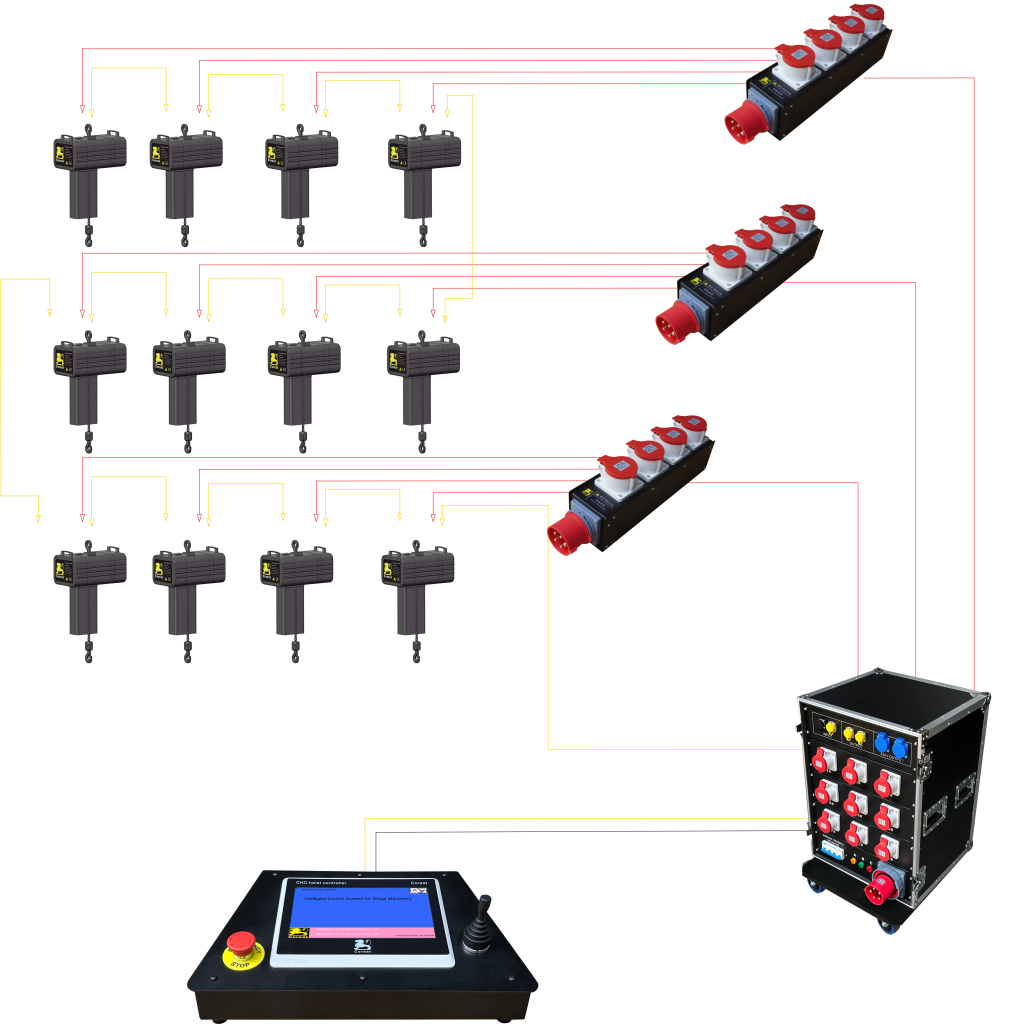

Intelligent CNC hoist system diagram
Electric hoist equipment parts
Transmissions
Hard chromium-manganese steel high-precision helical gear transmission, gearbox oil is permanently lubricated, wear-resistant and silent.
Motor
The dual braking system adopts DC electromagnetic 4 friction plate type, with adjustable clearance and higher safety factor.
Lifting chains
G100 grade and DAT grade high-quality alloy steel lifting chains with an 8-fold safety factor, breaking strength of 1000N/mm². The chains meet the German standards DIN5687, DIN5688 and the Chinese standard ISO3067.
Sprocket
5 nests of lifting sprockets, the machining center is formed at one time, and the chain and gear meshing are increased to ensure the smooth operation of the chain.
Chain guide system
Double layer automatic correction anti jamming chain system, wear-resistant nylon material, integrated injection molding and CNC precision machining, optimized for replacement and maintenance.
