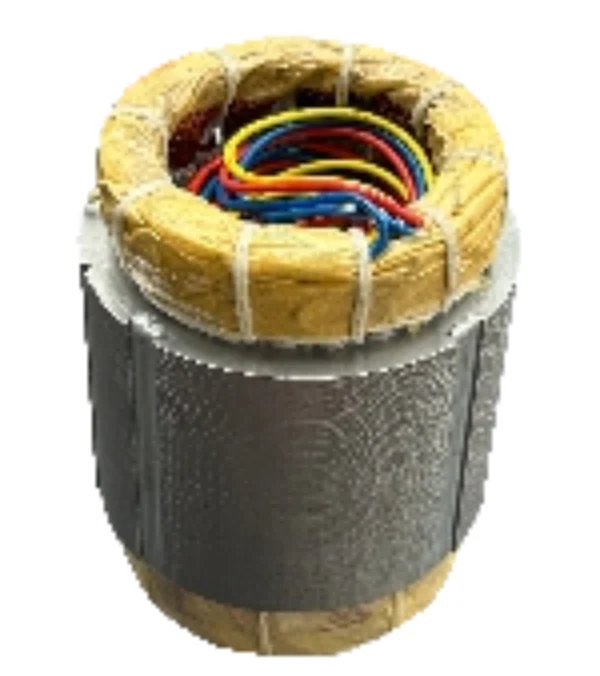

Motor
1. F-class insulated high-temperature resistant motor coil.
2. H-class high-temperature resistant motor lead-out wire.
2. H-class high-temperature resistant motor lead-out wire.

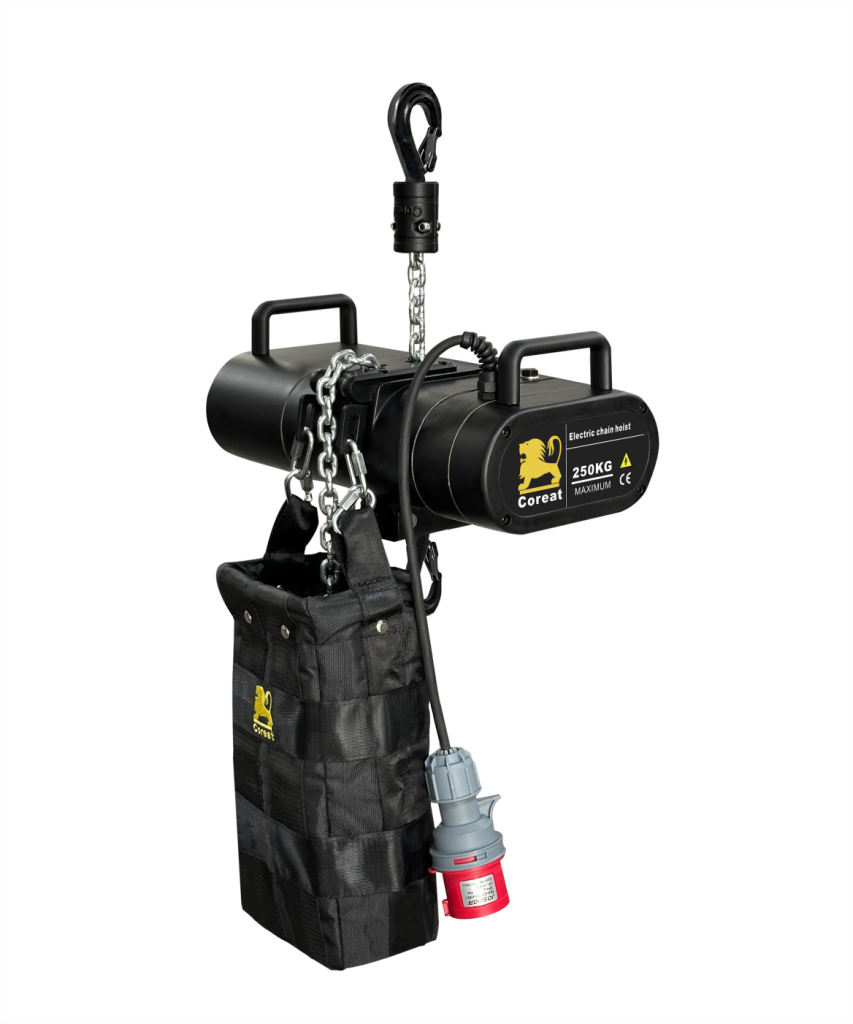

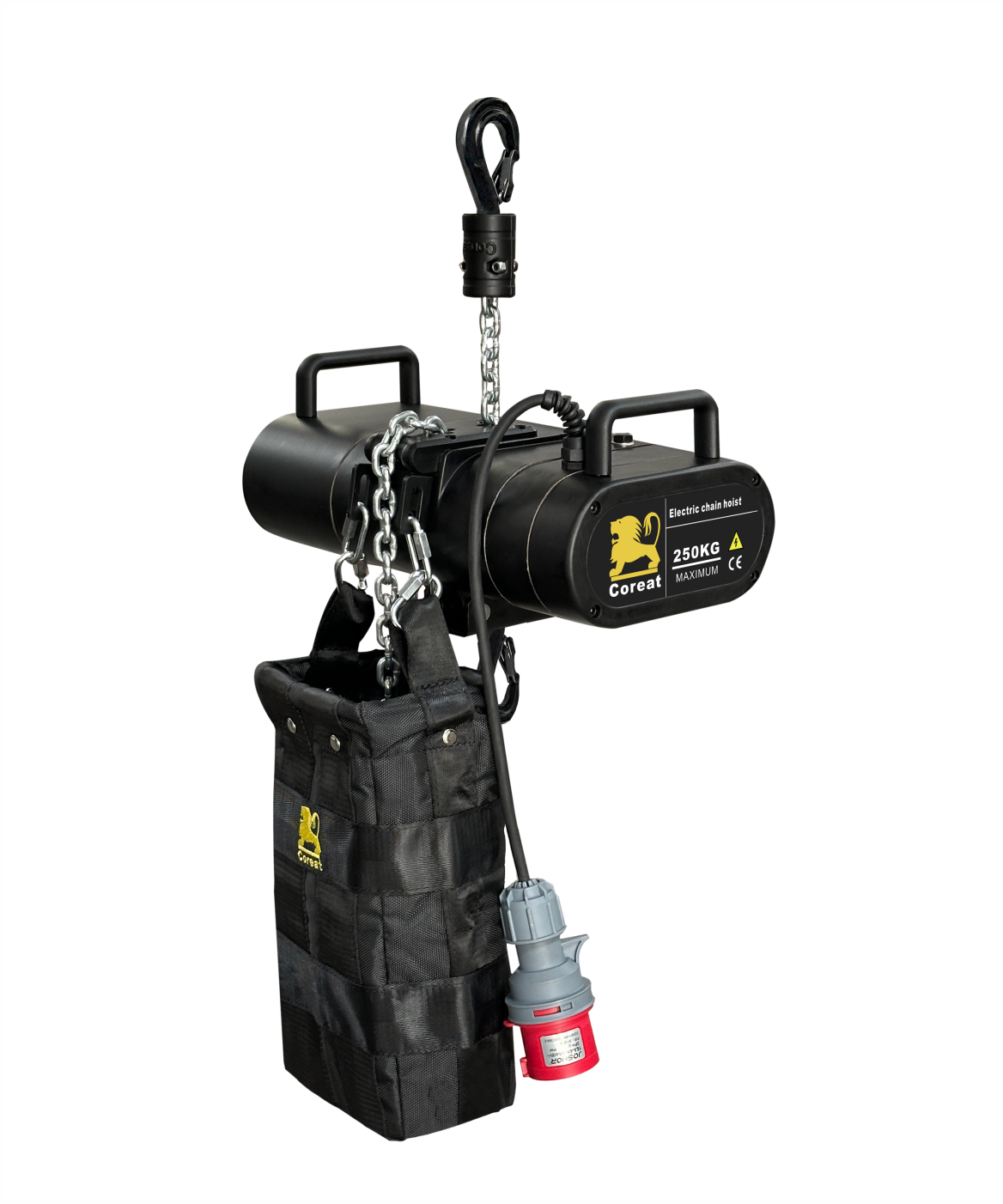

250KG STAGE HOIST D8/D8 PLUS
Coreat launched the 4th generation of high-quality aluminum alloy casting and forming electric hoist, European standard, appearance European design style, novel and beautiful, easy to install and use, convenient control, IP66 protection level structure design, safe and stable patented braking system, supporting intelligent operating system, so that the performance lifting and hanging intelligent simplification.
TECHNICAL SPECIFICATIONS
| Model | Rated load (kg) | Lifting Speed (m/min) | Power supply | Motor power (kw) | Chain specification (mm) | Chain safety factor | Chain Qty | Hoist weight (kg) | Chain weight (kg/m) | Degree of protection | Insulation class | Braking system | safety protection | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V02 D8 | 250 | 4 | AC 220V/400V 3P/50~60Hz | 0.2 | 5×15 | 8 | 1 | 13.3 | 0.5 | IP66 | F | single | Clutch overload protection | ||
| V02 D8 PLUS | 250 | 4 | 0.2 | 5×15 | 8 | 1 | 15.3 | 0.5 | IP66 | F | double | ||||

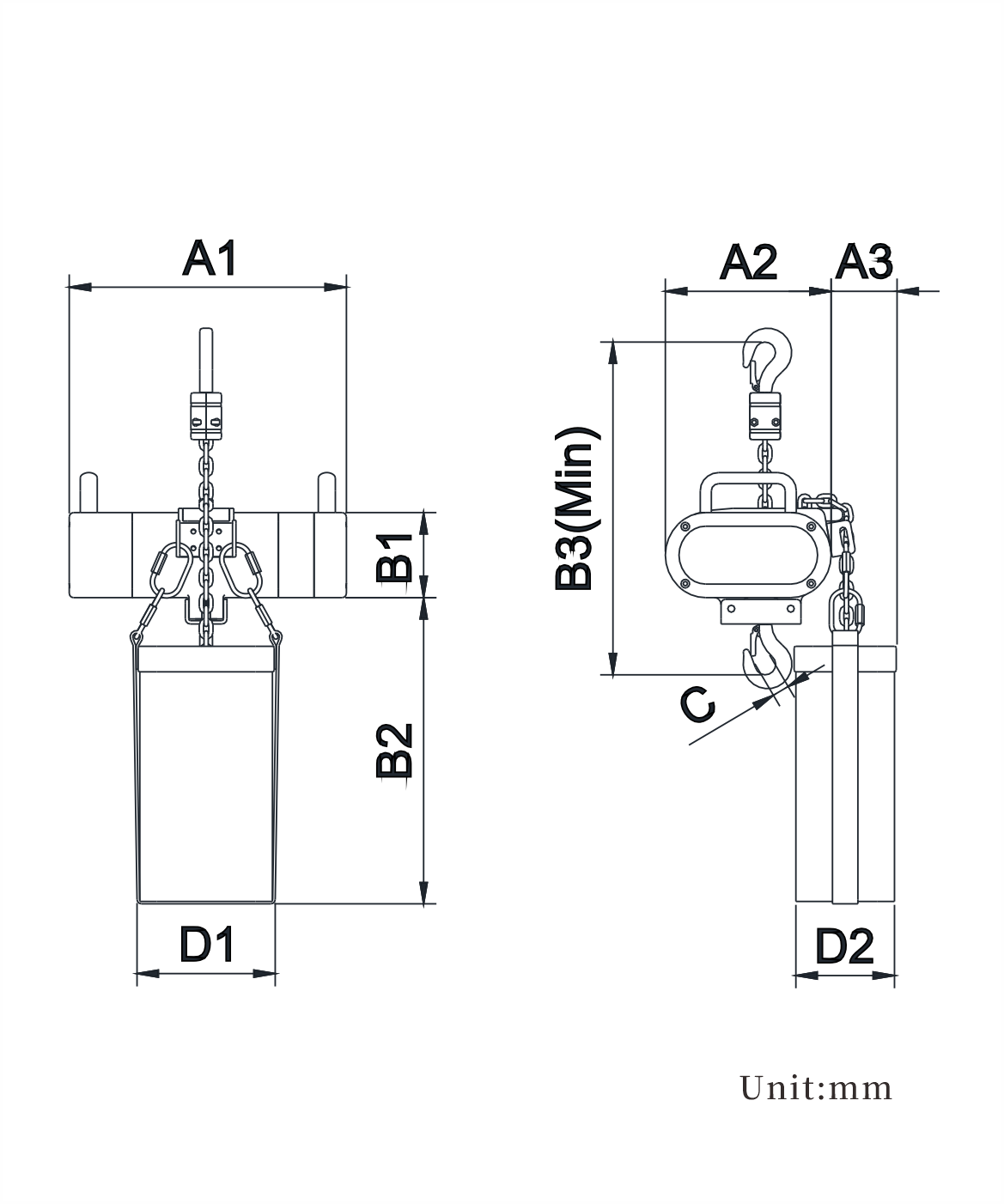

| Model | A1 | A2 | A3 | B1 | B2 | B3 | C | D1 | D2 |
|---|---|---|---|---|---|---|---|---|---|
| V02 D8 | 328 | 195 | 77 | 100 | 360 | 350 | 20 | 160 | 120 |
| V02 D8 PLUS | 372 | 195 | 77 | 100 | 360 | 350 | 20 | 160 | 120 |
Electric hoist equipment parts

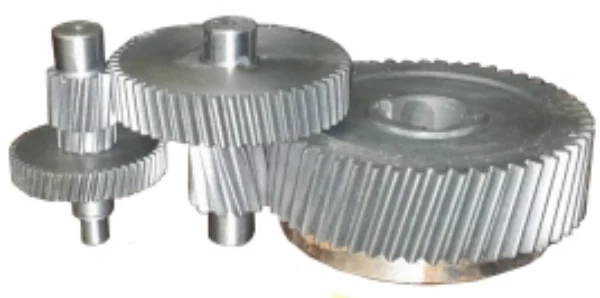

Transmissions
Hard chromium-manganese steel high-precision helical gear transmission, gearbox oil is permanently lubricated, wear-resistant and silent.

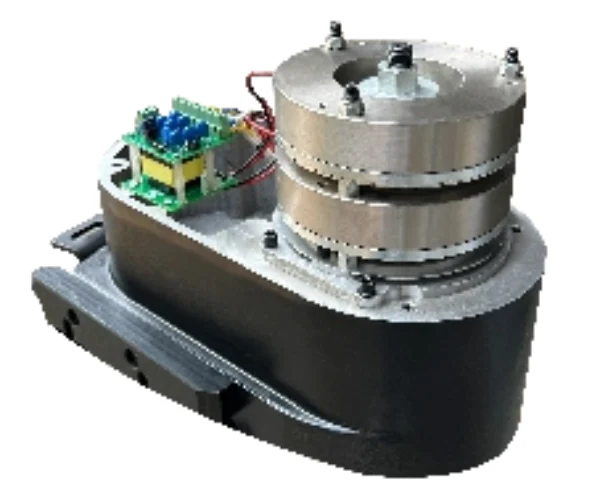

Motor
The dual braking system adopts DC electromagnetic 4 friction plate type, with adjustable clearance and higher safety factor.
Lifting chains
G100 grade and DAT grade high-quality alloy steel lifting chains with an 8-fold safety factor, breaking strength of 1000N/mm². The chains meet the German standards DIN5687, DIN5688 and the Chinese standard ISO3067.
Sprocket
5 nests of lifting sprockets, the machining center is formed at one time, and the chain and gear meshing are increased to ensure the smooth operation of the chain.
Chain guide system
Double layer automatic correction anti jamming chain system, wear-resistant nylon material, integrated injection molding and CNC precision machining, optimized for replacement and maintenance.
